Generate
PCB Libraries
from Datasheets
Stop drawing footprints manually.
Just upload a datasheet and our AI reads pin assignments, symbols,
and packages to generate ready-to-use.lbr files.
supported
Source
Datasheet PDF
Output
QFN24-3X3
Output
TSSOP8
Output
USB-C
Output
Audio Jack
Sound familiar?
Common challenges every PCB designer faces when creating libraries

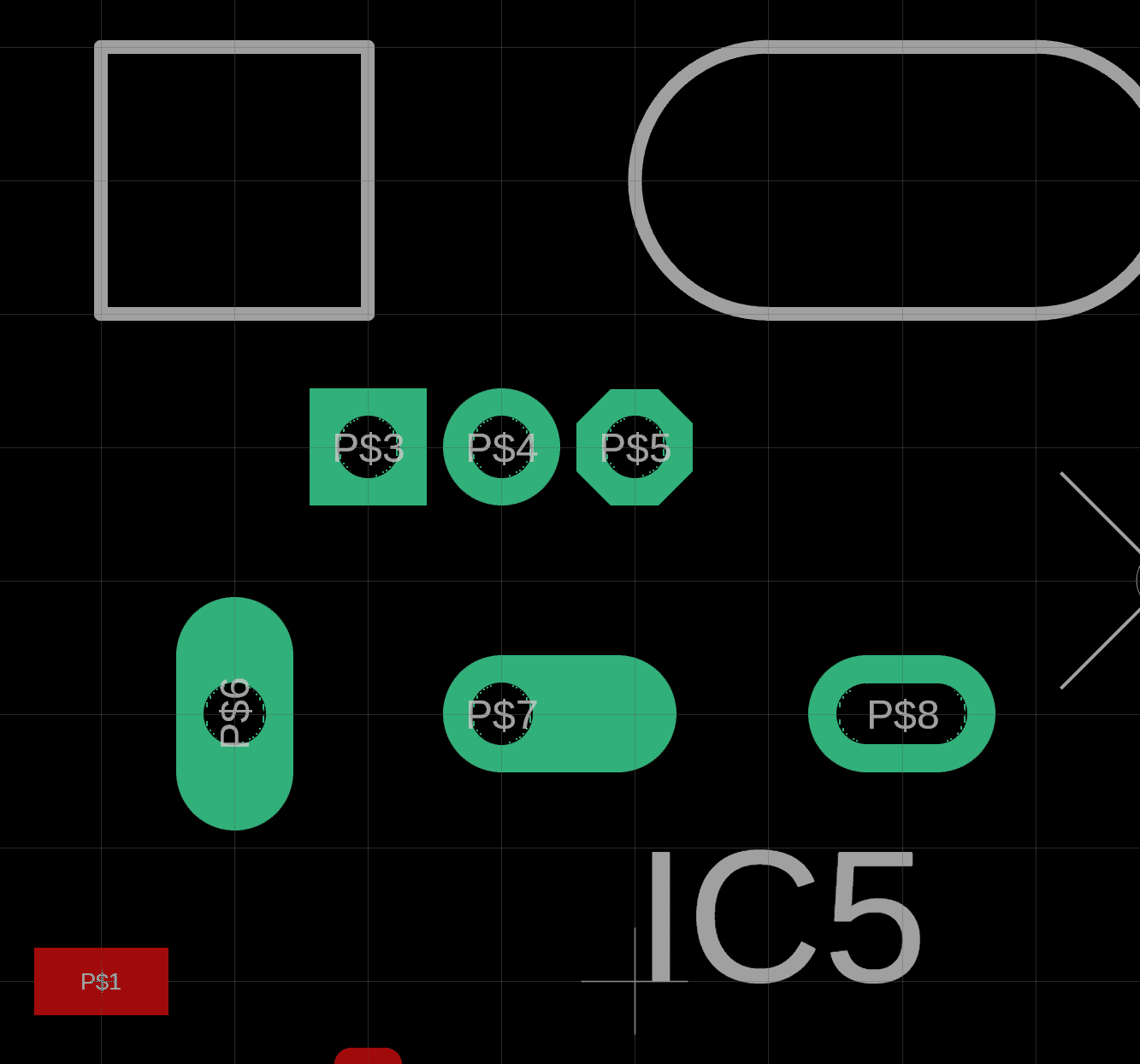

Hours of manual work
Reading pin numbers from datasheets, measuring footprint dimensions, drawing symbols, and mapping pin-to-pad connections. 30 min to hours per component — every time.
No existing library available
Parts without manufacturer libraries, niche components, newly released parts. When SnapEDA or Ultra Librarian don't have it, you're on your own.

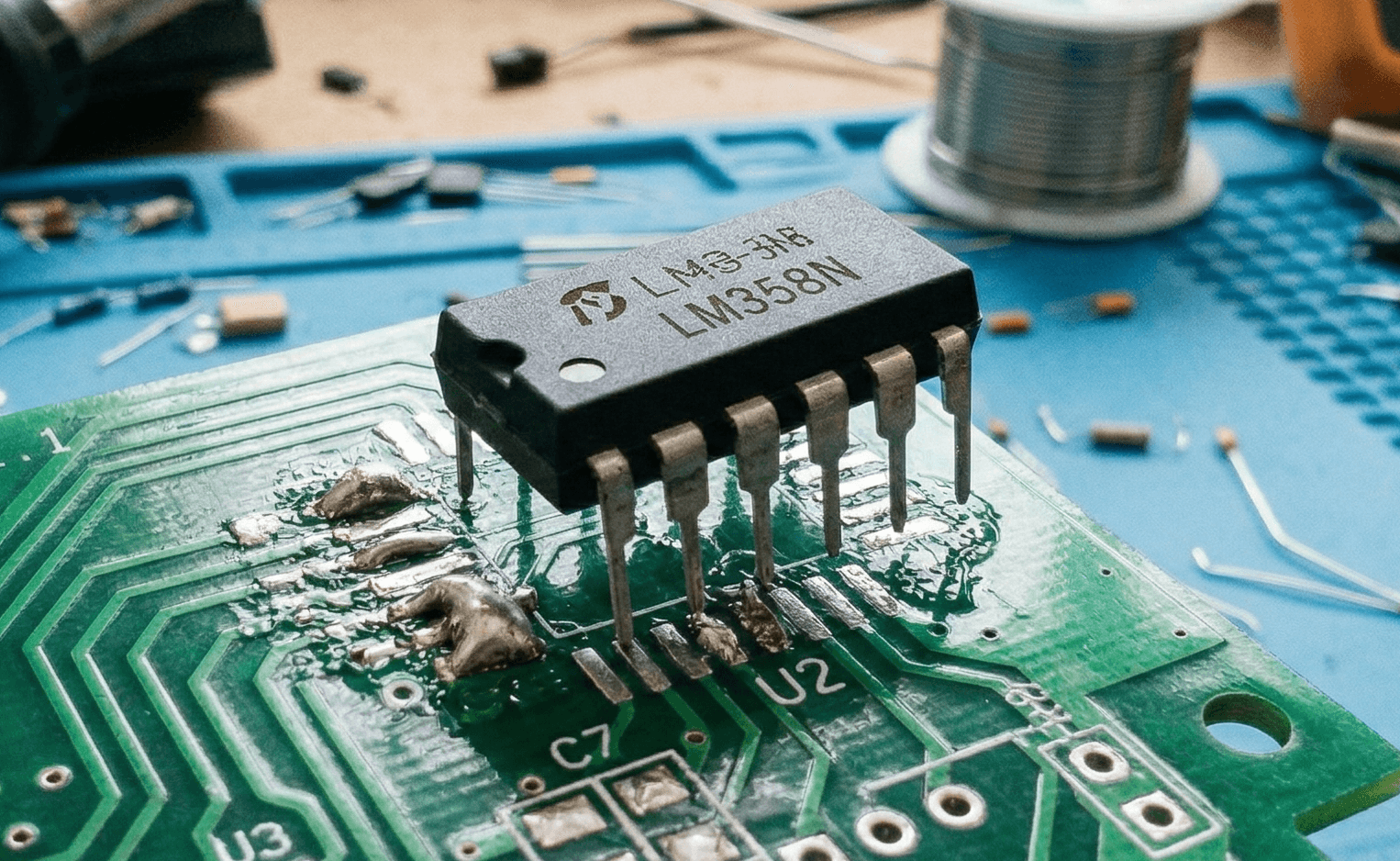

Mistakes mean board respins
Wrong pad sizes, pin number mismatches, flipped footprints. Small mistakes lead to board respins — costing thousands of dollars and weeks of delay.
Datasheet is all you need
Upload your datasheet and let AI do the rest
Upload Datasheet
Simply drag & drop your component datasheet. Enter the part name and start the chat.
AI Analyzes
AI automatically selects relevant pages from the datasheet, reads pin assignments, dimensions, and package info to generate the library.
Download .lbr
Download the generated .lbr file with one click. Import directly into Fusion 360 PCB and start designing.
Any Package, Any Part
QFP, QFN, SOP, connectors, through-hole — there are no limits on package types
LQFP32
QFN24
SOP16
TSSOP8
SO8
SOT-523
TO-252
VLGA-8
QFN20
QFN24 IMU
Tact SW
USB-C
Audio Jack
SIP6
Coin Cell
Electrolytic
LQFP32
QFN24
SOP16
TSSOP8
SO8
SOT-523
TO-252
VLGA-8
QFN20
QFN24 IMU
Tact SW
USB-C
Audio Jack
SIP6
Coin Cell
Electrolytic
These are just a few examples. If there's a datasheet, we can generate a library for it.
Simple, Transparent Pricing
Pay only for what you generate.
No subscriptions. No hidden fees.
Starting from
per component
Price scales with component complexity.
Simple resistors cost less, complex MCUs cost more.
Everything included
- AI-powered generation in minutes
- Symbol + Footprint + Device map
- Ready-to-use .lbr file output
- No subscription required
Accelerating hardware design by automating component library generation with AI.
2-8-4 Ebisu Nishi, Shibuya-ku, Tokyo
Leacron Inc.
